Editable Class diagram example

Observer pattern Mermaid diagram example

Updated 12 September 2026 · Renders with Mermaid 11.17.2

Edit this observer pattern class model in Mermaid, inspect the rendered result, and adapt the working source for your own documentation.

About this example

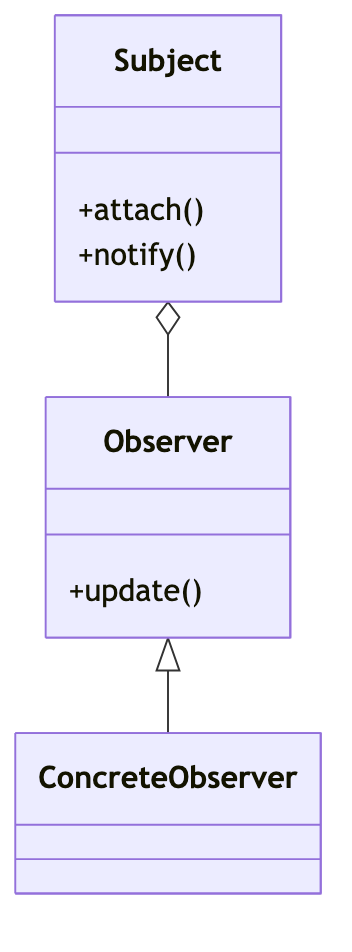

This observer pattern class model example is designed as an editable starting point rather than a finished specification. In the rendered diagram, a Subject aggregates observers and notifies a concrete implementation. Read the structure once before changing the source so identifiers, labels, and connections stay aligned. The example is intentionally small enough to test after every edit, but it includes the syntax needed to communicate the central relationship. Open it in mermaid.tools, make one change at a time, and keep the Mermaid source alongside exported images so the diagram remains maintainable.

Mermaid source

classDiagram
  class Subject {
    +attach()
    +notify()
  }
  class Observer {
    +update()
  }
  Subject o-- Observer
  Observer <|-- ConcreteObserver

Adapt it

• Add method signatures and multiplicities only when they clarify the implemented contract.
• Keep identifiers short and stable while changing the visible labels for your audience.
• Preview after each structural edit, then remove sample nodes that do not represent real information.
• Export SVG for scalable documentation or PNG when the destination expects a fixed image.

• class
• class-diagram
• observer
• pattern

This example source is dedicated to the public domain under CC0 1.0. Review generated diagrams before relying on them in documentation.
