Editable State diagram example

Background job states Mermaid diagram example

Updated 12 September 2026 · Renders with Mermaid 11.17.2

Edit this background job state machine in Mermaid, inspect the rendered result, and adapt the working source for your own documentation.

About this example

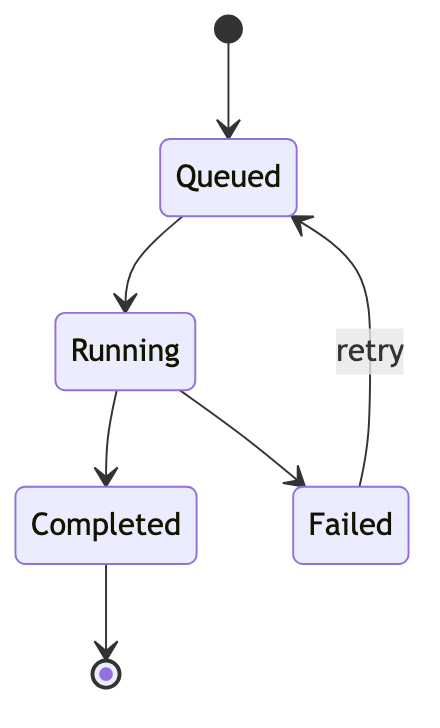

This background job state machine example is designed as an editable starting point rather than a finished specification. In the rendered diagram, a queued job can complete or fail, while failed work can retry. Read the structure once before changing the source so identifiers, labels, and connections stay aligned. The example is intentionally small enough to test after every edit, but it includes the syntax needed to communicate the central relationship. Open it in mermaid.tools, make one change at a time, and keep the Mermaid source alongside exported images so the diagram remains maintainable.

Mermaid source

stateDiagram-v2
  [*] --> Queued
  Queued --> Running
  Running --> Completed
  Running --> Failed
  Failed --> Queued : retry
  Completed --> [*]

Adapt it

• Add only transitions the worker truly permits and label guards or retry limits.
• Keep identifiers short and stable while changing the visible labels for your audience.
• Preview after each structural edit, then remove sample nodes that do not represent real information.
• Export SVG for scalable documentation or PNG when the destination expects a fixed image.

• background
• job
• state-diagram
• states

This example source is dedicated to the public domain under CC0 1.0. Review generated diagrams before relying on them in documentation.
